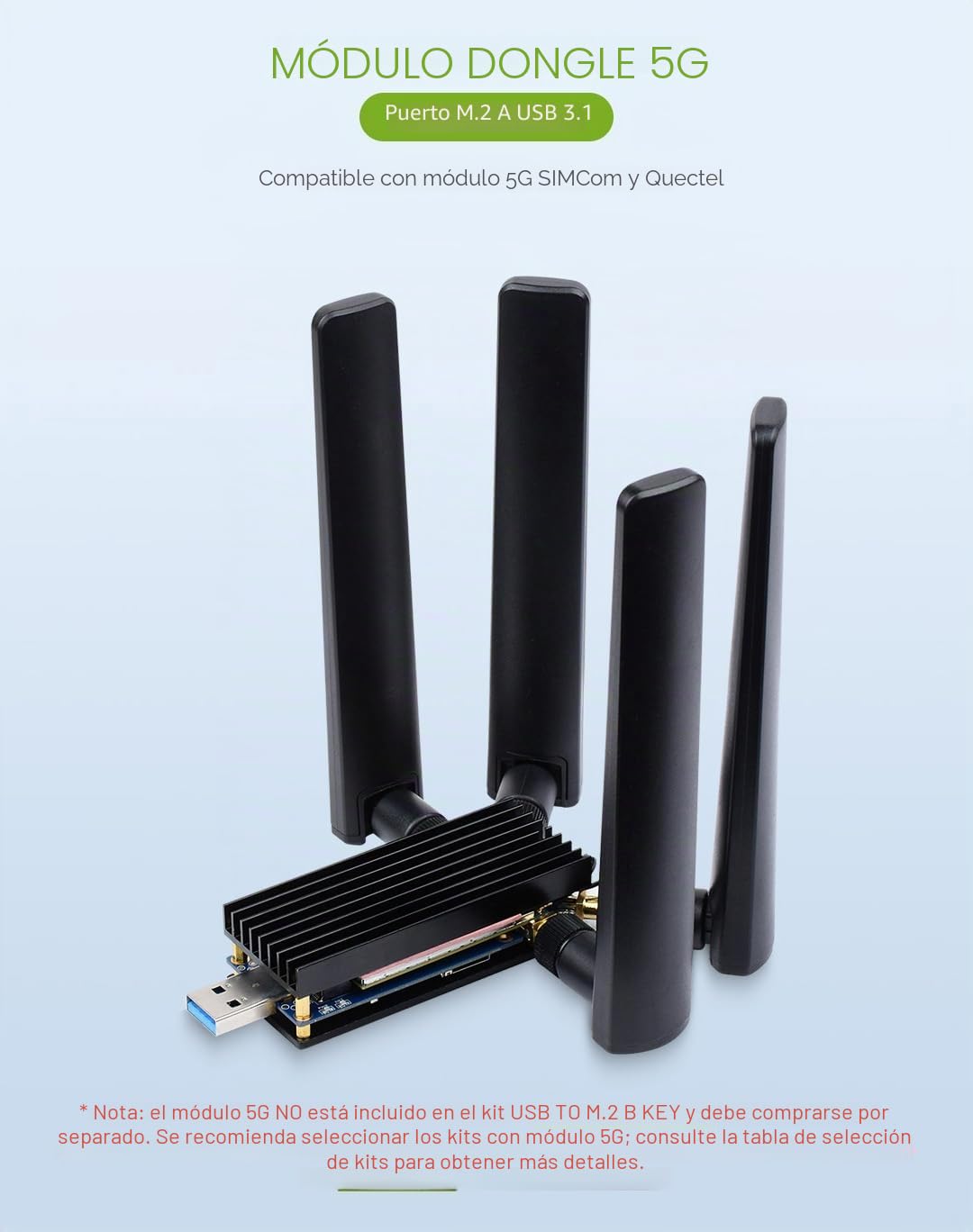

Waveshare USB TO M.2 B Key Module Driver Board for M.2 Interface 4G/5G Module(Not Included), with Quad Antennas,USB 3.1 Port for Raspberry Pi/PC/Jetson Nano to Achieve High Speed 5G Network

Marca: Waveshare
Interfaz de hardware: USB 3.1 tipo A
Color: negro
Dispositivos compatibles: Ordenador personal
Protocolo de enlace de datos: USB
Velocidad de transferencia de datos: 5 Gigabits por segundo
Familia de sistema operativo compatible: Linux
Fabricante: Waveshare

- Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom and Quectel 5G modules. Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules.

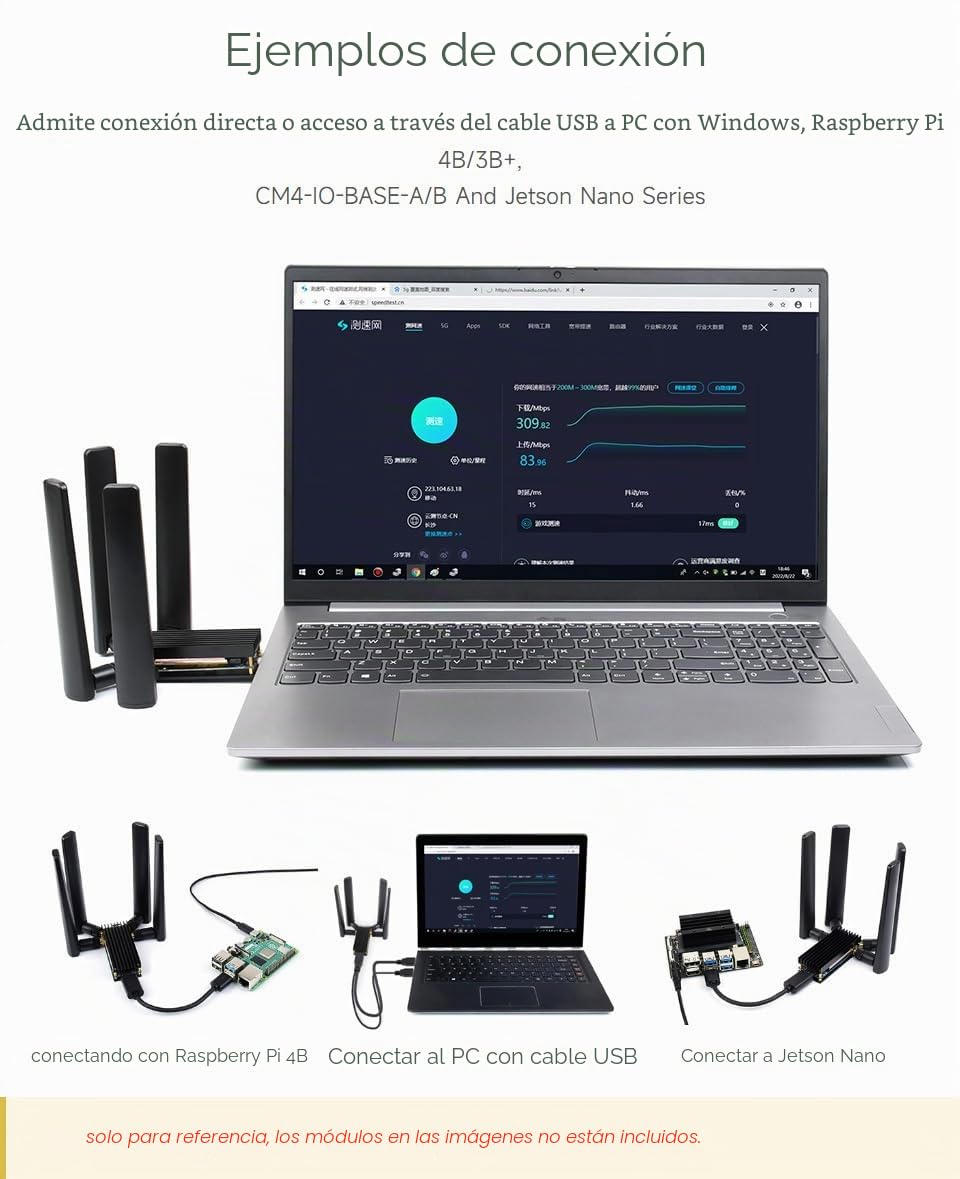

- USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network. 4x SMA antenna connectors, easy to install the antenna.
- Onboard SIM card slot for NANO SIM card. Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions.

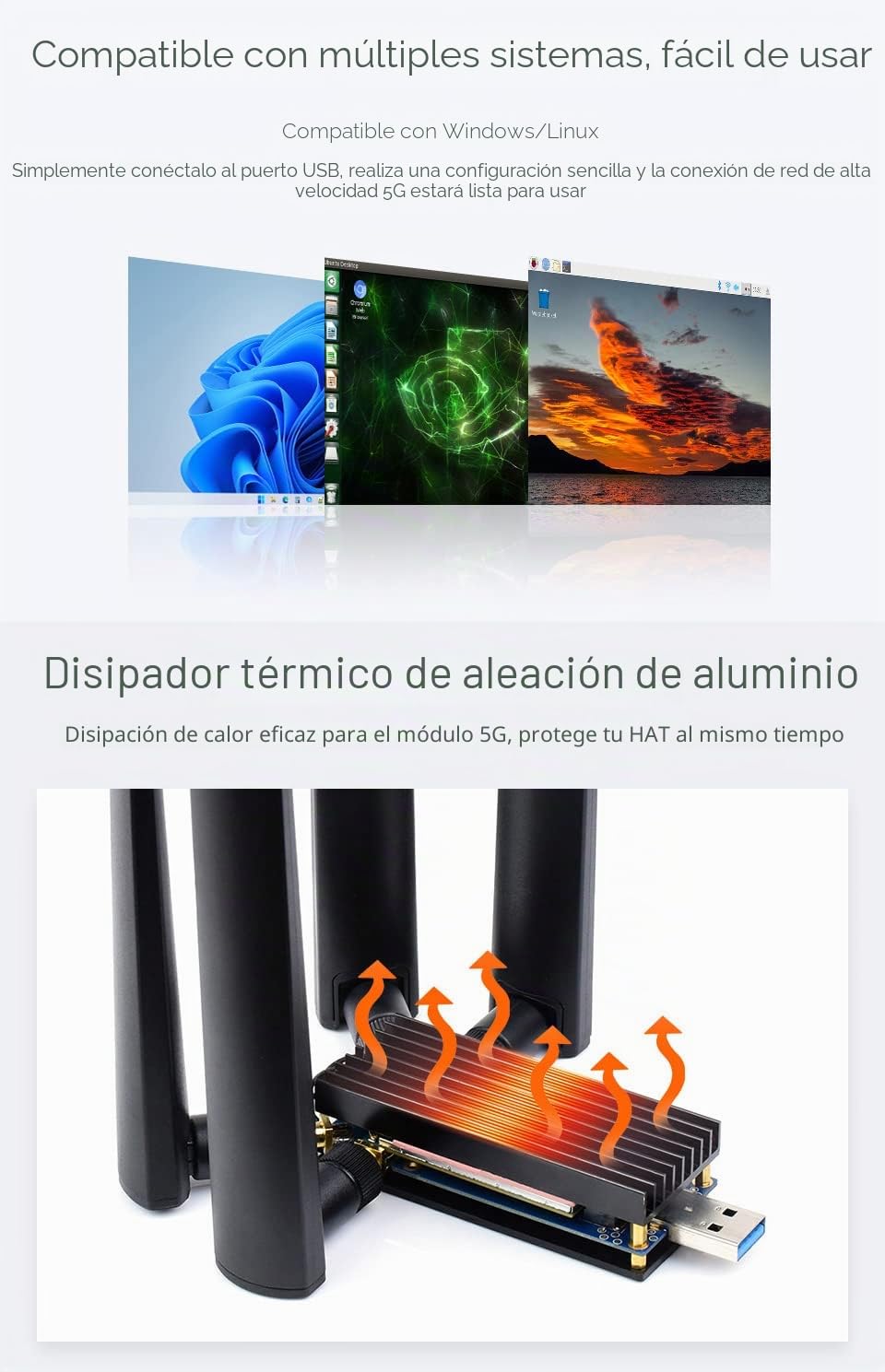

- PCB ENIG process, reserved multi slots and positioning holes for integration. Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable.
- Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use.
